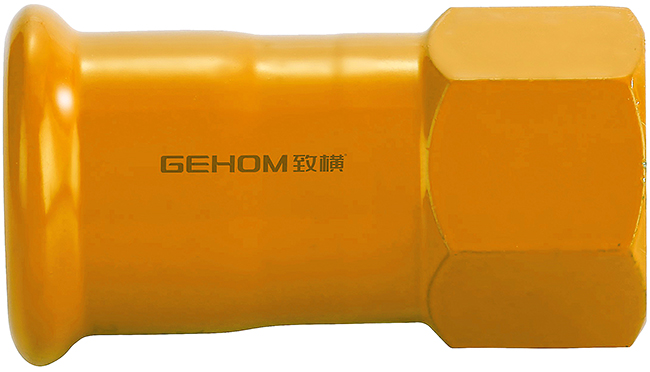

燃气卡压管件—内螺纹转换接头参数
公称通径(dn) | 外径(mm) | 长度(mm) | 承插(mm) | 壁厚(mm) |
DN15xRp1/2" | 18xRp1/2" | 58 | 20 | 1.5 |
DN20xRp3/4" | 22xRp3/4" | 60 | 21 | 1.5 |
DN25xRp1" | 28xRp1" | 68 | 23 | 1.5 |
DN32xRp1-1/4" | 35xRp1-1/4" | 75 | 26 | 1.5 |
DN40xRp1-1/2" | 42xRp1-1/2" | 78 | 31 | 1.5 |
DN50xRp2" | 54xRp2" | 95 | 35 | 1.5 |
DN65xRp2-1/2" | 76.1xRp2-1/2" | 116 | 53 | 2.0 |
DN80xRp3" | 88.9xRp3" | 130 | 60 | 2.0 |
DN100xRp4" | 108xRp4" | 155 | 75 | 2.0 |
